Vishay
40EPF12PBF
VISHAY 40EPF12PBF Fast / Ultrafast Power Diode, Single, 1.2 kV, 20 A, 1.25 V, 95 ns, 475 A
PackageTO-247-2
Current Rating40A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay 40EPF12PBF technical specifications.
General
Average Rectified Current
40A
Package/Case
TO-247-2
Current Rating
40A
Forward Current
20A
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
475A
Max Operating Temperature
150°C
Min Operating Temperature
-40°C
Max Repetitive Reverse Voltage (Vrrm)
1.2kV
Max Reverse Current
100uA
Max Reverse Voltage (DC)
1.2kV
Mount
Through Hole
Package Quantity
500
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
475A
Reach SVHC Compliant
Unknown
Reverse Recovery Time
450ns
Reverse Recovery Time-Max
140ns
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Vishay 40EPF12PBF Datasheet
Download the complete datasheet for Vishay 40EPF12PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

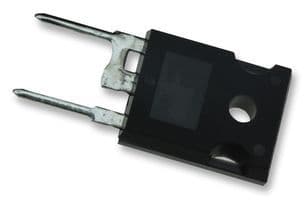

Product Images
