Single Layer Ceramic Capacitor, 56pF capacitance, 1kV DC rated voltage, and 5% tolerance. Features C0G dielectric with a dissipation factor of 0.1%. Radial package with 6.4mm lead pitch, 0.51mm lead diameter, and 29mm lead length. Operating temperature range from -55°C to 105°C. Through-hole mounting with tin contact plating.
PackageRadial
Voltage1kV
Capacitance56pF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Vishay 561R10TCCQ56 technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
56pF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Depth
4mm
Diameter
11.2mm
Dielectric
C0G
Dissipation Factor
0.1%
Height - Seated (Max)
0.566inch
Lead Diameter
0.51mm
Lead Length
29mm
Lead Pitch
6.4mm
Lead/Base Style
Straight
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB, Radial
Package Quantity
250
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Cera-Mite 561R
Termination
Radial
Thickness
4mm
Tolerance
5%
Voltage
1kV
Voltage Rating
1kV
DC Rated Voltage
1kV
Compliance
RoHS
Compliant
Datasheet
Vishay 561R10TCCQ56 Datasheet
Download the complete datasheet for Vishay 561R10TCCQ56 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

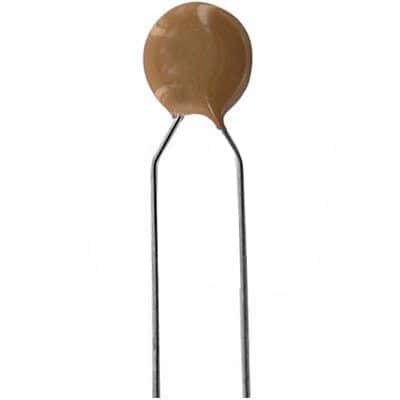

Product Images
