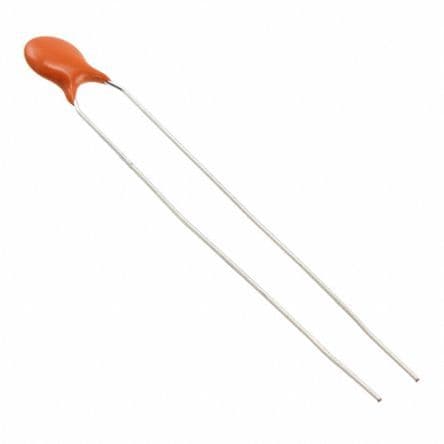

General purpose radial leaded ceramic capacitor with 10nF capacitance and 1kV DC rated voltage. Features Z5U dielectric, 20% tolerance, and a maximum operating temperature of 105°C. Through-hole mounting with tin-plated radial leads. RoHS compliant.
PackageRadial
Voltage1kV
Capacitance10nF
Voltage Rating1kV
Quick Jump:
Technical Specifications
Vishay 562R5GAS10 technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
10nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Depth
4mm
Diameter
12.4mm
Dielectric
Z5U
Dissipation Factor
2.5%
Height - Seated (Max)
0.613inch
Lead Diameter
0.64mm
Lead Free
Lead Free
Lead Length
29mm
Lead Pitch
9.5mm
Lead/Base Style
Straight
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, Radial
Package Quantity
250
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
Cera-Mite 562R
Termination
Radial
Tolerance
20%
Voltage
1kV
Voltage Rating
1kV
DC Rated Voltage
1kV
Width
4mm
Compliance
RoHS
Compliant
