Radial leaded ceramic capacitor with 6.8nF capacitance and 3kV DC rated voltage. Features Y5S dielectric, 20% tolerance, and a maximum operating temperature of 105°C. Designed for general purpose applications with a 9.5mm lead pitch and 0.81mm lead diameter. Through-hole mounting with tin contact plating.
PackageRadial
Voltage3kV
Capacitance6.8nF
Voltage Rating3kV
Quick Jump:
Technical Specifications
Vishay 564R30TSSD68 technical specifications.
General
Application(s)
GENERAL PURPOSE
Capacitance
6.8nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin
Depth
5.2mm
Diameter
0.9inch
Dielectric
Y5S
Dissipation Factor
0.2%
Height - Seated (Max)
1.091inch
Lead Diameter
0.81mm
Lead Pitch
9.5mm
Lead/Base Style
Straight
Max Operating Temperature
105°C
Min Operating Temperature
-25°C
Mount
Through Hole, PCB, Radial
Package Quantity
125
Packaging
Bulk
RoHS Compliant
Yes
Series
Cera-Mite 564R
Termination
Radial
Tolerance
20%
Voltage
3kV
Voltage Rating
3kV
DC Rated Voltage
3kV
Compliance
RoHS
Compliant
Datasheet
Vishay 564R30TSSD68 Datasheet
Download the complete datasheet for Vishay 564R30TSSD68 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

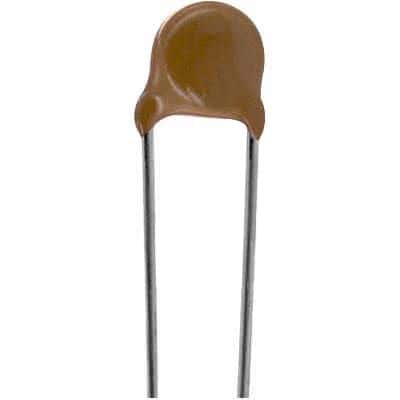

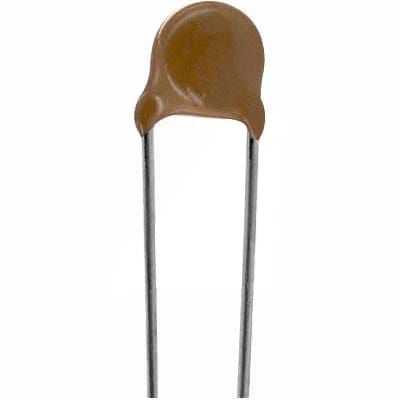

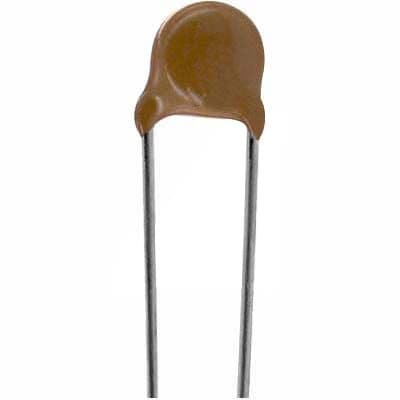

Product Images
