Solid tantalum capacitor, 220µF capacitance, 10V DC rated voltage, 10% tolerance. Features 125mΩ ESR, 22µA leakage current, and 1.1A ripple current. Surface mount package in 2917 (7343 metric) case code, with dimensions of 7.3mm length, 4.3mm depth, and 2.8mm height. Operating temperature range from -55°C to 125°C. RoHS compliant.
Package2917
Voltage10V
Capacitance220uF
Voltage Rating10V
Quick Jump:
Technical Specifications
Vishay 593D227X9010D2TE3 technical specifications.
General
| Capacitance | 220uF |
| Case Code (Imperial) | 2917 |
| Case Code (Metric) | 7343 |
| Package/Case | 2917 |
| Depth | 4.3mm |
| Dielectric Material | Tantalum |
| Dissipation Factor | 8% |
| ESR (Equivalent Series Resistance) | 125mR |
| Features | General Purpose |
| Height | 2.8mm |
| Height - Seated (Max) | 0.122inch |
| Lead Free | Lead Free |
| Leakage Current | 22uA |
| Length | 7.3mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Mount | Surface Mount, PCB |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Polarity | Polar |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Ripple Current | 1.1A |
| RoHS Compliant | Yes |
| Series | TANTAMOUNT® 593D |
| Termination | SMD/SMT |
| Tolerance | 10% |
| Voltage | 10V |
| Voltage Rating | 10V |
| DC Rated Voltage | 10V |
| Weight | 0.023634oz |
| Width | 0.169inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay 593D227X9010D2TE3 Datasheet
Download the complete datasheet for Vishay 593D227X9010D2TE3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

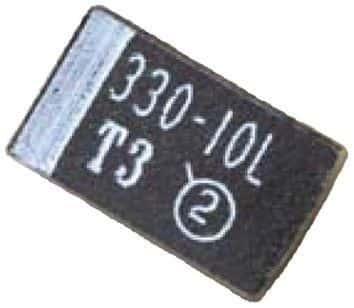

Product Images
