Solid tantalum capacitor with 1uF capacitance and 20V voltage rating. Features 9 Ohm ESR, 10% tolerance, and a maximum operating temperature of 125°C. Surface mountable in a 2211 metric case code (0804 imperial), this component offers a leakage current of 500nA and is supplied on tape and reel.
PackageConformal Coated
Voltage20V
Capacitance1uF
Voltage Rating20V
Quick Jump:
Technical Specifications
Vishay 595D105X9020T2T technical specifications.
General
Capacitance
1uF
Case Code (Imperial)
0804
Case Code (Metric)
2211
Package/Case
Conformal Coated
Construction
Flat
Depth
1.1mm
Dielectric Material
Tantalum
Dissipation Factor
4%
ESR (Equivalent Series Resistance)
9R
Features
General Purpose
Height
1.1mm
Height - Seated (Max)
0.055inch
Lead Free
Lead Free
Leakage Current
500nA
Length
2.2mm
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Polarity
Polar
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Ripple Current
60uA
RoHS Compliant
Yes
Series
595D
Termination
SMD/SMT
Tolerance
10%
Voltage
20V
Voltage Rating
20V
Voltage Rating (AC)
20V
Width
0.043inch
Compliance
RoHS
Compliant
Datasheet
Vishay 595D105X9020T2T Datasheet
Download the complete datasheet for Vishay 595D105X9020T2T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

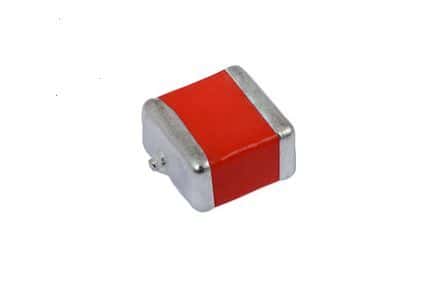

Product Images
