PackageSOD-80-2
Current Rating200mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay BAQ35-GS08 technical specifications.
General
Average Rectified Current
200mA
Package/Case
SOD-80-2
Contact Plating
Tin, Silver
Current Rating
200mA
Forward Current
200mA
Height
1.6mm
Lead Free
Lead Free
Length
3.7mm
Max Forward Surge Current (Ifsm)
2A
Max Operating Temperature
175°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
140V
Max Reverse Current
1nA
Max Reverse Leakage Current
1nA
Max Reverse Voltage (DC)
140V
Max Surge Current
2A
Mount
Surface Mount
Package Quantity
2500
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
2A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Compliance
RoHS
Compliant
Datasheet
Vishay BAQ35-GS08 Datasheet
Download the complete datasheet for Vishay BAQ35-GS08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

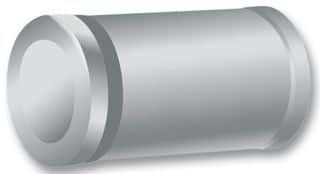

Product Images
