PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay BAS70-06-E3-08 technical specifications.
General
Average Rectified Current
200mA
Package/Case
SOT-23
Forward Current
200mA
Lead Free
Lead Free
Max Forward Surge Current (Ifsm)
600mA
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Power Dissipation
200mW
Max Repetitive Reverse Voltage (Vrrm)
70V
Max Reverse Current
100nA
Max Reverse Voltage (DC)
70V
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
600mA
Reach SVHC Compliant
Unknown
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Weight
0.00031oz
Compliance
RoHS
Compliant
Datasheet
Vishay BAS70-06-E3-08 Datasheet
Download the complete datasheet for Vishay BAS70-06-E3-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

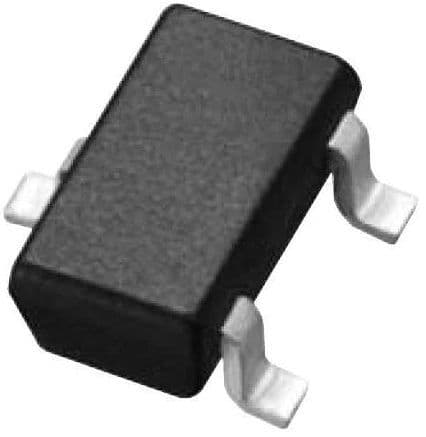

Product Images
