Vishay
BAT42-TAP
DIODE 0.2 A, 30 V, SILICON, SIGNAL DIODE, DO-35, HALOGEN FREE AND ROHS COMPLIANT PACKAGE-2, Signal Diode
PackageDO-35
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BAT42-TAP technical specifications.
General
Average Rectified Current
200mA
Package/Case
DO-35
Contact Plating
Tin, Silver
Forward Current
200mA
Max Operating Temperature
125°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
30V
Max Reverse Leakage Current
500nA
Max Reverse Voltage (DC)
30V
Max Surge Current
4A
Mount
Through Hole
Package Quantity
50000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
4A
Reverse Recovery Time
5ns
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Compliance
RoHS
Compliant
Datasheet
Vishay BAT42-TAP Datasheet
Download the complete datasheet for Vishay BAT42-TAP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

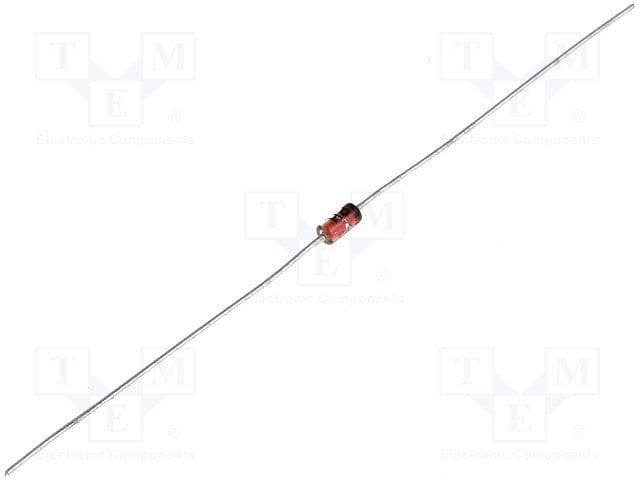

Product Images
