Radial metallized polypropylene film capacitor, 630V DC rated voltage, 310V AC rated voltage, 220nF capacitance with 20% tolerance. Features through-hole mounting with radial leads, tin-matte contact plating, and a maximum operating temperature of 110°C. RoHS compliant with a lead-free construction.
PackageRadial
Voltage630V
Capacitance220nF
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay BFC233620224 technical specifications.
General
Capacitance
220nF
Package/Case
Radial
Construction
RADIAL
Contact Plating
Tin, Matte
Depth
7mm
Diameter
10mm
Dielectric
PP
Dielectric Material
PP
Height
16.5mm
Lead Diameter
0.8mm
Lead Free
Lead Free
Lead Pitch
15mm
Length
17.5mm
Max Operating Temperature
110°C
Min Operating Temperature
-55°C
Mount
Through Hole
Package Quantity
500
Packaging
Bulk
Radiation Hardening
No
Ratings
X2
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
MKP336 2
Termination
Radial
Tolerance
20%
Voltage
630V
Voltage Rating (AC)
310V
DC Rated Voltage
630V
Width
10mm
Compliance
RoHS
Compliant
Datasheet
Vishay BFC233620224 Datasheet
Download the complete datasheet for Vishay BFC233620224 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

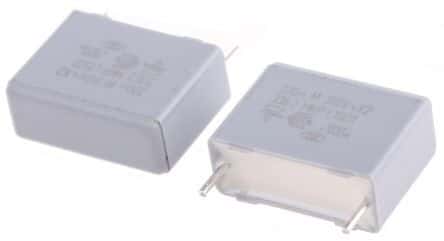

Product Images
