Technical Specifications
Vishay BZG05C3V9TR technical specifications.
General
| Package/Case | DO-214AC |
| Impedance | 15R |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 1.25W |
| Max Reverse Leakage Current | 10uA |
| Mount | Surface Mount |
| Package Quantity | 6000 |
| Packaging | Tape and Reel |
| Power Dissipation | 1.25W |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Tolerance | 5% |
| Voltage Tolerance | 5% |
| Zener Voltage | 3.9V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay BZG05C3V9TR Datasheet
Download the complete datasheet for Vishay BZG05C3V9TR to view detailed technical specifications.
No datasheet is available for this part.

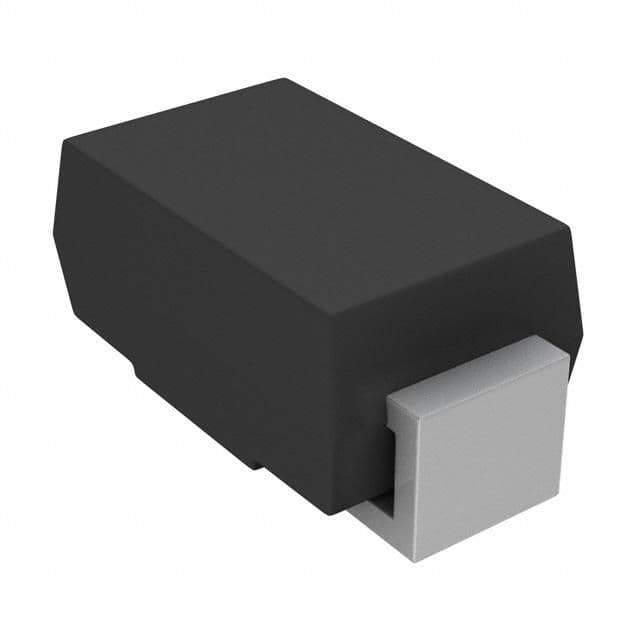

Product Images
