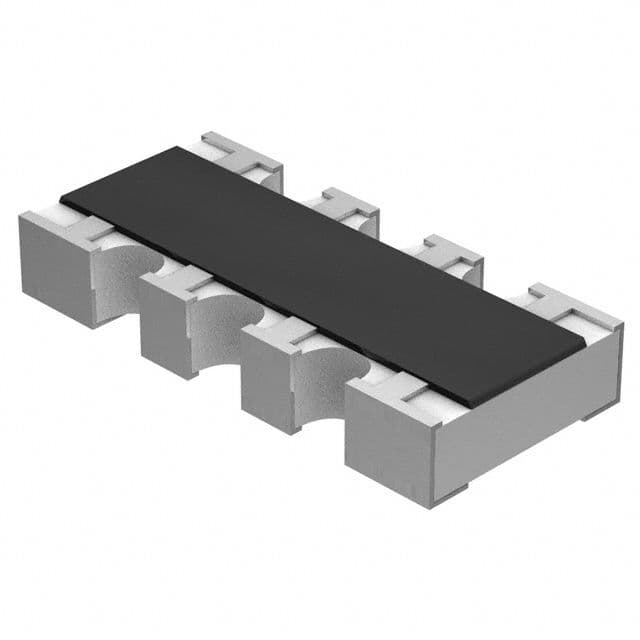

Surface mount resistor array featuring 4 isolated thick film elements, each with 100 Ohm resistance and 5% tolerance. This 1206 (3216 metric) case code component offers a 0.8mm terminal pitch and operates within a -55°C to +155°C temperature range, with a DC rated voltage of 50V. Each element provides 62.5mW power dissipation, with a total power dissipation of 63mW. Packaged in tape and reel, this RoHS compliant component is designed for molded applications.
PackageMolded
Resistance100R
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay CRA06S083100RJTA technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
Molded
Circuit Type
Isolated
Contact Plating
Tin
Depth
1.5mm
Height
0.5mm
Lead Free
Exempt
Lead Pitch
0.8mm
Length
3.2mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Contacts
8
Number of Elements
4
Number of Resistors
4
Package Quantity
5000
Packaging
Tape and Reel
Power Dissipation
63mW
Power Per Element
62.5mW
Radiation Hardening
No
Resistance
100R
RoHS Compliant
Yes
Series
CRA06
Technology
THICK FILM
Terminal Pitch
0.8mm
Termination
Convex
Thickness
500um
Tolerance
5%
DC Rated Voltage
50V
Width
1.5mm
Working Voltage
50V
Compliance
RoHS
Compliant
Datasheet
Vishay CRA06S083100RJTA Datasheet
Download the complete datasheet for Vishay CRA06S083100RJTA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
