Automotive-qualified chip resistor with 2.43MR resistance and 1% tolerance. Features a 0402 (1005 metric) case size, 1/16W power rating (63mW max), and a 50V DC voltage rating. Operating temperature range from -55°C to 155°C. Thick film technology with tin contact plating, supplied on tape and reel.
Package0402
Resistance2.43MR
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay CRCW04022M43FKED technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200 |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 63mW |
| Number of Terminations | 2 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 2.43MR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW04022M43FKED Datasheet
Download the complete datasheet for Vishay CRCW04022M43FKED to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

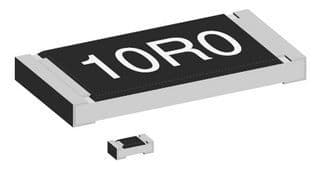

Product Images
