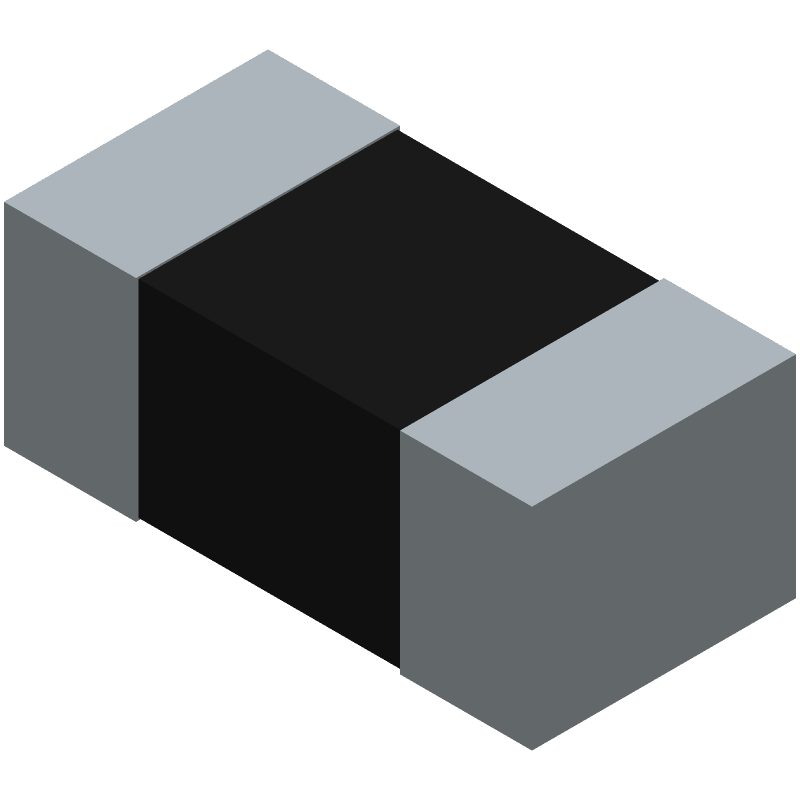

Surface mount thick film chip resistor, 0402 package size, offering 604 ohms resistance with a 1% tolerance. Features a 0.063W (63mW) power dissipation rating and a 50V working voltage. Constructed with metal glaze/thick film technology, it operates from -55°C to 155°C and is AEC-Q200 qualified. This component is lead-free, RoHS compliant, and supplied on tape and reel.
Package0402
Resistance604R
Voltage Rating50V
Quick Jump:
Technical Specifications
Vishay CRCW0402604RFKED technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Max Power Dissipation | 63mW |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Number of Terminations | 2 |
| Package Quantity | 10000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 604R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Weight | 2.3E-05oz |
| Width | 0.5mm |
| Working Voltage | 50V |
Compliance
| RoHS | Compliant |
