130k Ohm 1% tolerance thick film chip resistor, 0603 SMD/SMT package. Features 1/10W (100mW) power dissipation, 75V voltage rating, and operating temperature range of -55°C to 155°C. Automotive AEC-Q200 qualified, lead-free, and RoHS compliant. Dimensions: 1.55mm length, 0.85mm depth, 0.45mm height, 0.033inch width.
Package0603
Resistance130kR
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay CRCW0603130KFKEA technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.85mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
1.55mm
Max Operating Temperature
155°C
Max Power Dissipation
100mW
Military Standard
Not
Min Operating Temperature
-55°C
Number of Terminations
2
Package Quantity
10
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
130kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
0603
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
75V
DC Rated Voltage
75V
Weight
7.1E-05oz
Width
0.033inch
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW0603130KFKEA Datasheet
Download the complete datasheet for Vishay CRCW0603130KFKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

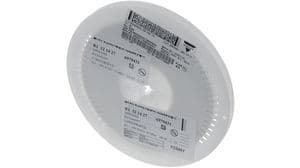

Product Images
