Automotive-qualified, thick film surface mount chip resistor with 39 kΩ resistance and 1% tolerance. Features 100 mW power dissipation, 75 V voltage rating, and operates from -55°C to +155°C. Housed in a 0603 (1608 metric) case code with tin plating, this lead-free component is supplied on tape and reel.
Package0603
Resistance39kR
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay CRCW060339K0FKEA technical specifications.
General
Case Code (Imperial)
0603
Case Code (Metric)
1608
Package/Case
0603
Construction
Rectangular
Contact Plating
Tin
Depth
0.85mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
1.55mm
Max Operating Temperature
155°C
Military Standard
Not
Min Operating Temperature
-55°C
Max Power Dissipation
100mW
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Radiation Hardening
No
Ratings
AEC-Q200
Reach SVHC Compliant
Unknown
Resistance
39kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
0603
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
75V
DC Rated Voltage
75V
Weight
7.1E-05oz
Width
0.85mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW060339K0FKEA Datasheet
Download the complete datasheet for Vishay CRCW060339K0FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

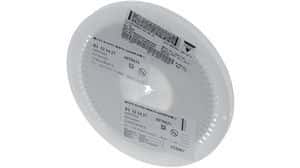

Product Images
