Automotive-qualified thick film chip resistor, 56.2 ohm resistance with 1% tolerance. Features a 0603 (1608 metric) SMD/SMT package, 1/10W (100mW) power dissipation, and 75V working voltage. Operating temperature range from -55°C to 155°C. Lead-free and RoHS compliant construction with tin contact plating.
Package0603
Resistance56.2R
Voltage Rating75V
Quick Jump:
Technical Specifications
Vishay CRCW060356R2FKEA technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.85mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 1.55mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 56.2R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 75V |
| DC Rated Voltage | 75V |
| Weight | 7.1E-05oz |
| Width | 0.033inch |
| Working Voltage | 75V |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW060356R2FKEA Datasheet
Download the complete datasheet for Vishay CRCW060356R2FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

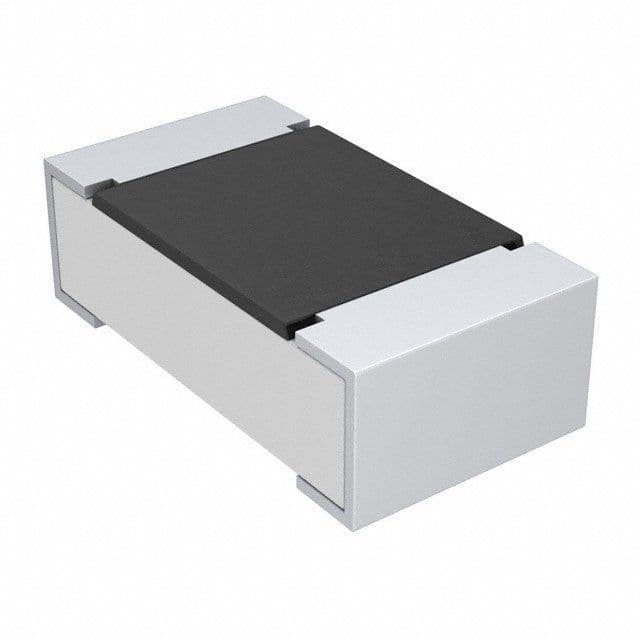

Product Images
