Surface mount thick film fixed resistor, 1.33kΩ resistance with 1% tolerance. Features 125mW power dissipation and a 150V voltage rating. Constructed with tin plating and a rectangular chip package, measuring 2mm x 1.25mm x 0.45mm (0805 imperial case code). Operates across a -55°C to 155°C temperature range and is halogen-free and RoHS compliant.
Package0805
Resistance1.33kR
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW08051K33FKEA technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Construction
Rectangular
Contact Plating
Tin
Depth
1.25mm
Features
Automotive AEC-Q200
Height
0.45mm
Lead Free
Lead Free
Length
2mm
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
125mW
Military Standard
Not
Number of Terminations
2
Package Quantity
10
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1.33kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Size Code
0805
Technology
THICK FILM
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
150V
DC Rated Voltage
150V
Weight
0.000194oz
Width
0.049inch
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW08051K33FKEA Datasheet
Download the complete datasheet for Vishay CRCW08051K33FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

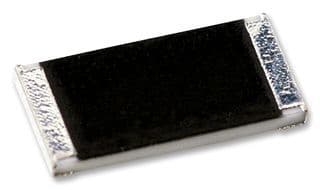

Product Images
