Surface mount thick film fixed resistor, 0.5W power rating, 270 ohm resistance with 1% tolerance. Features a 150V voltage rating and a wide operating temperature range from -55°C to 155°C. Constructed with metal glaze technology and housed in an 0805 (2012 metric) case code with tin plating. This component is halogen-free, RoHS compliant, and meets automotive AEC-Q200 standards.
Package0805
Resistance270R
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW0805270RFKEAHP technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.024inch |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 500mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 270R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW0805270RFKEAHP Datasheet
Download the complete datasheet for Vishay CRCW0805270RFKEAHP to view detailed technical specifications.
No datasheet is available for this part.

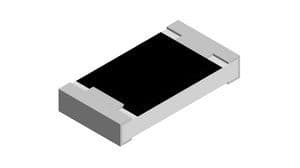

Product Images
