Automotive-grade 0805 SMD chip resistor with 560kΩ resistance and 1% tolerance. Features thick film technology, 1/8W power dissipation, and a 150V DC rating. Constructed with tin plating and a rectangular case, this component operates from -55°C to 155°C and is RoHS compliant.
Package0805
Resistance560kR
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW0805560KFKEA technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Reach SVHC Compliant | Unknown |
| Resistance | 560kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Size Code | 0805 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW0805560KFKEA Datasheet
Download the complete datasheet for Vishay CRCW0805560KFKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

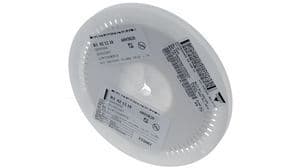

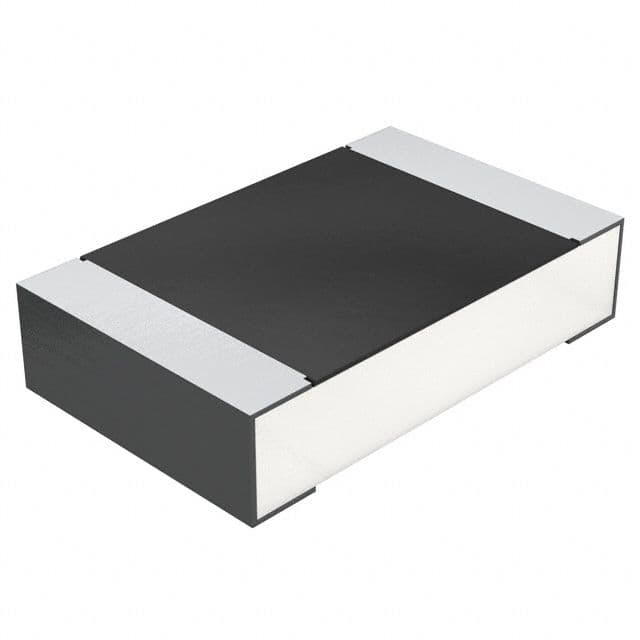

Product Images
