SMD chip resistor, thick film, 5.6 kΩ resistance with 1% tolerance. Features a 150V voltage rating and 330mW power dissipation. Automotive AEC-Q200 qualified, operating from -55°C to +155°C. Housed in an 0805 (2012 metric) case code with SMD/SMT termination.
Package0805
Resistance5.6kR
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW08055K60FKEAHP technical specifications.
General
Case Code (Imperial)
0805
Case Code (Metric)
2012
Package/Case
0805
Features
Automotive AEC-Q200
Height
0.024inch
Lead Free
Lead Free
Length
0.079inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
333mW
Number of Terminations
2
Package Quantity
5000
Packaging
Tape and Reel
Reach SVHC Compliant
Unknown
Resistance
5.6kR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW-HP
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
150V
DC Rated Voltage
150V
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW08055K60FKEAHP Datasheet
Download the complete datasheet for Vishay CRCW08055K60FKEAHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

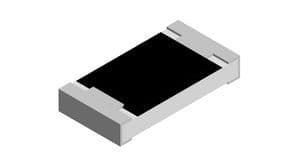

Product Images
