Technical Specifications
Vishay CRCW08055R60FKEA technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.02inch |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 155°C |
| Military Standard | Not |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Resistance | 5.6R |
| RoHS Compliant | Yes |
| Series | CRCW |
| Tolerance | 1% |
| Voltage Rating | 150V |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW08055R60FKEA Datasheet
Download the complete datasheet for Vishay CRCW08055R60FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

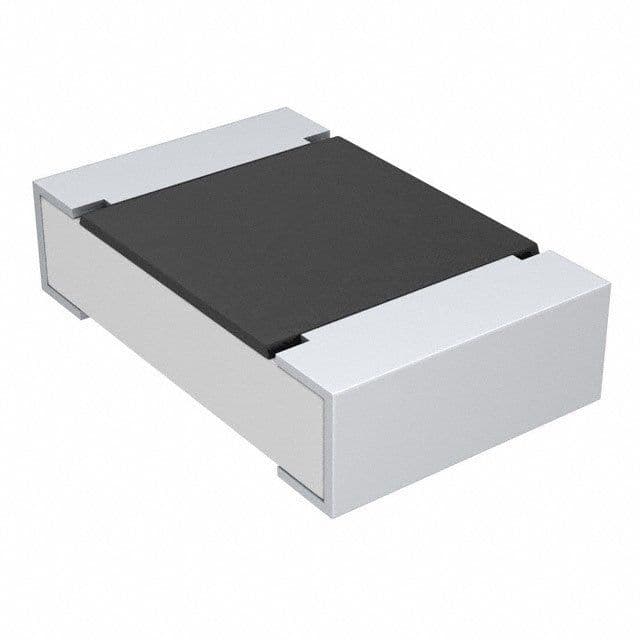

Product Images
