Surface mount thick film fixed resistor, 0805 case code, offering 825 ohms resistance with a 1% tolerance. Features a 125mW power rating and 150V voltage rating, operating from -55°C to 155°C. Designed with tin contact plating and a 2-termination SMD/SMT package. This component is halogen-free, RoHS compliant, and meets automotive AEC-Q200 standards.
Package0805
Resistance825R
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW0805825RFKEA technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Depth | 1.25mm |
| Features | Automotive AEC-Q200 |
| Height | 0.45mm |
| Lead Free | Lead Free |
| Length | 2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Cut Tape |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 825R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Size Code | 0805 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW0805825RFKEA Datasheet
Download the complete datasheet for Vishay CRCW0805825RFKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

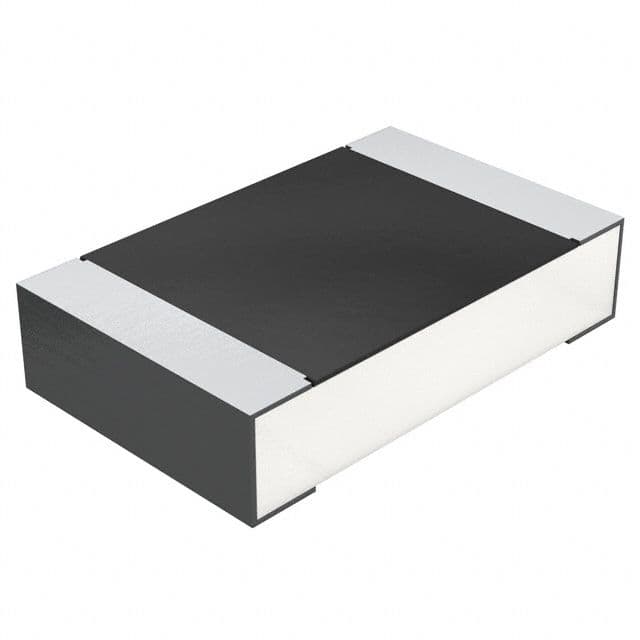

Product Images
