SMD chip resistor with 9.53M ohm resistance and 1% tolerance. Features a 0805 case code (2012 metric) and 1/8W (125mW) power dissipation. Operating temperature range is -55°C to 155°C, with a 150V voltage rating. Automotive AEC-Q200 qualified and RoHS compliant.
Package0805
Resistance9.53MR
Voltage Rating150V
Quick Jump:
Technical Specifications
Vishay CRCW08059M53FKEA technical specifications.
General
| Case Code (Imperial) | 0805 |
| Case Code (Metric) | 2012 |
| Package/Case | 0805 |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200 |
| Height | 0.02inch |
| Lead Free | Lead Free |
| Length | 0.079inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 125mW |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | Unknown |
| Resistance | 9.53MR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW |
| Tolerance | 1% |
| Voltage Rating | 150V |
| DC Rated Voltage | 150V |
| Weight | 0.000194oz |
| Width | 0.049inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW08059M53FKEA Datasheet
Download the complete datasheet for Vishay CRCW08059M53FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

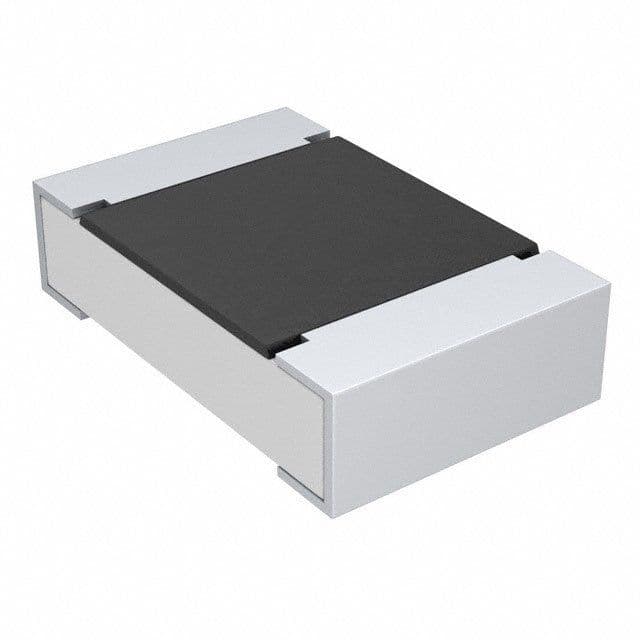

Product Images
