![SMD Chip Resistor, 1 MOhm, ± 5%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose](https://static.datasheets.com/image/22115415-vishay-crcw12061m00jneb-image.jpg)
Vishay
CRCW12061M00JNEB
SMD Chip Resistor, 1 MOhm, ± 5%, 250 mW, 1206 [3216 Metric], Thick Film, General Purpose
Package1206
Resistance1MR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CRCW12061M00JNEB technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Plating
Tin
Features
Automotive AEC-Q200
Height
0.024inch
Lead Free
Lead Free
Length
0.126inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Number of Terminations
2
Package Quantity
10000
Packaging
Tape and Reel
Radiation Hardening
No
Resistance
1MR
RoHS Compliant
Yes
Series
CRCW
Tolerance
5%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000353oz
Width
1.6mm
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW12061M00JNEB Datasheet
Download the complete datasheet for Vishay CRCW12061M00JNEB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

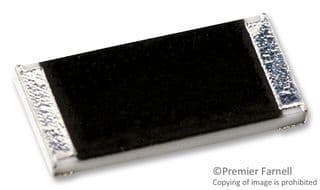

Product Images
