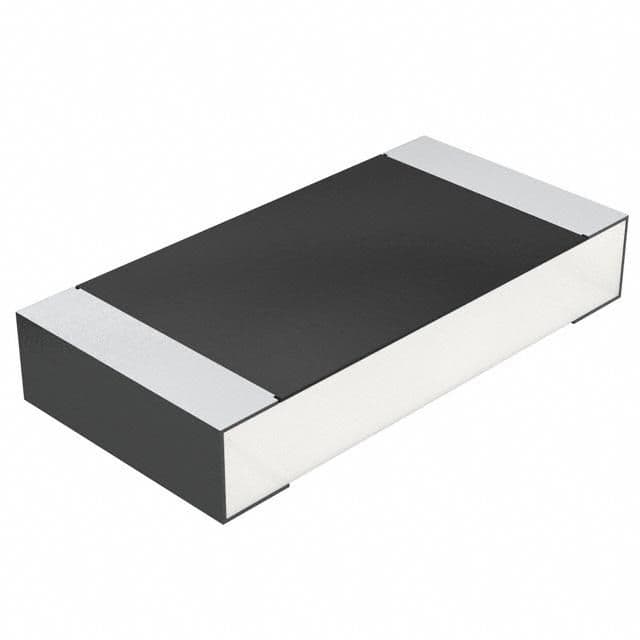

Thick film chip resistor, 1206 case size, offering 1.62M Ohm resistance with a tight 1% tolerance. Features a 250mW power rating, 200V voltage rating, and operates across a wide temperature range from -55°C to 155°C. Automotive AEC-Q200 qualified and RoHS compliant, this molded SMD component is supplied on tape and reel.
Package1206
Resistance1.62MR
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CRCW12061M62FKEA technical specifications.
General
Case Code (Imperial)
1206
Case Code (Metric)
3216
Package/Case
1206
Contact Plating
Tin
Features
Automotive AEC-Q200
Height
0.024inch
Lead Free
Lead Free
Length
0.126inch
Max Operating Temperature
155°C
Min Operating Temperature
-55°C
Max Power Dissipation
250mW
Number of Terminations
2
Package Quantity
10
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
Unknown
Resistance
1.62MR
Resistance Tolerance
1%
Resistor Type
Thick Film
RoHS Compliant
Yes
Series
CRCW
Termination
SMD/SMT
Tolerance
1%
Voltage Rating
200V
DC Rated Voltage
200V
Weight
0.000353oz
Width
0.063inch
Compliance
RoHS
Compliant
Datasheet
Vishay CRCW12061M62FKEA Datasheet
Download the complete datasheet for Vishay CRCW12061M62FKEA to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
