Automotive-grade thick film chip resistor, 56 Ohm resistance with 1% tolerance. Features a 1206 (3216 metric) SMD/SMT package, 750mW power dissipation, and a 200V voltage rating. Operating temperature range from -55°C to 155°C. Lead-free and RoHS compliant.
Package1206
Resistance56R
Voltage Rating200V
Quick Jump:
Technical Specifications
Vishay CRCW120656R0FKEAHP technical specifications.
General
| Case Code (Imperial) | 1206 |
| Case Code (Metric) | 3216 |
| Package/Case | 1206 |
| Depth | 1.6mm |
| Features | Automotive AEC-Q200 |
| Height | 0.5mm |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 750mW |
| Number of Terminations | 2 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | Unknown |
| Resistance | 56R |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 200V |
| DC Rated Voltage | 200V |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW120656R0FKEAHP Datasheet
Download the complete datasheet for Vishay CRCW120656R0FKEAHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

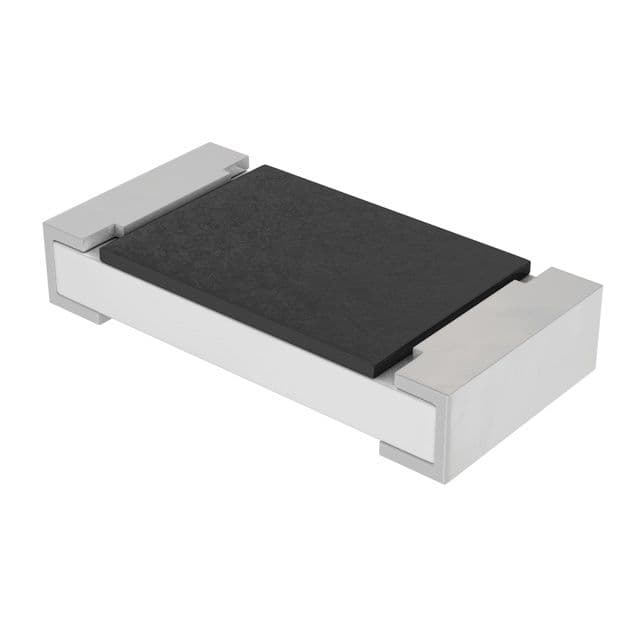

Product Images
