Technical Specifications
Vishay CRCW2512100RJNEGHP technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200 |
| Height | 0.6mm |
| Lead Free | Lead Free |
| Length | 6.3mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5W |
| Number of Terminations | 2 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Ratings | AEC-Q200 |
| Resistance | 100R |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Tolerance | 5% |
| Voltage Rating | 500V |
| Weight | 0.001482oz |
| Width | 3.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW2512100RJNEGHP Datasheet
Download the complete datasheet for Vishay CRCW2512100RJNEGHP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

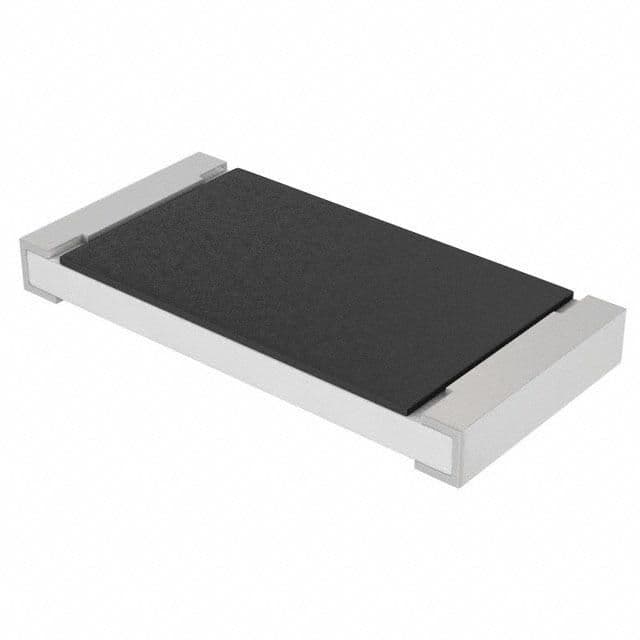

Product Images
