Vishay
CRCW25121K50JNEGHP
Fixed Resistor, Metal Glaze/thick Film, 1.5W, 1500ohm, 500V, 5% +/-Tol, 200ppm/Cel, Surface Mount, 2512, CHIP, HALOGEN FREE AND ROHS COMPLIANT
Package2512
Resistance1.5kR
Quick Jump:
Technical Specifications
Vishay CRCW25121K50JNEGHP technical specifications.
General
| Case Code (Imperial) | 2512 |
| Case Code (Metric) | 6432 |
| Package/Case | 2512 |
| Contact Plating | Tin |
| Features | Automotive AEC-Q200 |
| Height | 0.028inch |
| Lead Free | Lead Free |
| Length | 0.248inch |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 1.5W |
| Number of Terminations | 2 |
| Package Quantity | 10 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 1.5kR |
| RoHS Compliant | Yes |
| Series | CRCW-HP |
| Tolerance | 5% |
| Width | 0.124inch |
Compliance
| RoHS | Compliant |
Datasheet
Vishay CRCW25121K50JNEGHP Datasheet
Download the complete datasheet for Vishay CRCW25121K50JNEGHP to view detailed technical specifications.
No datasheet is available for this part.

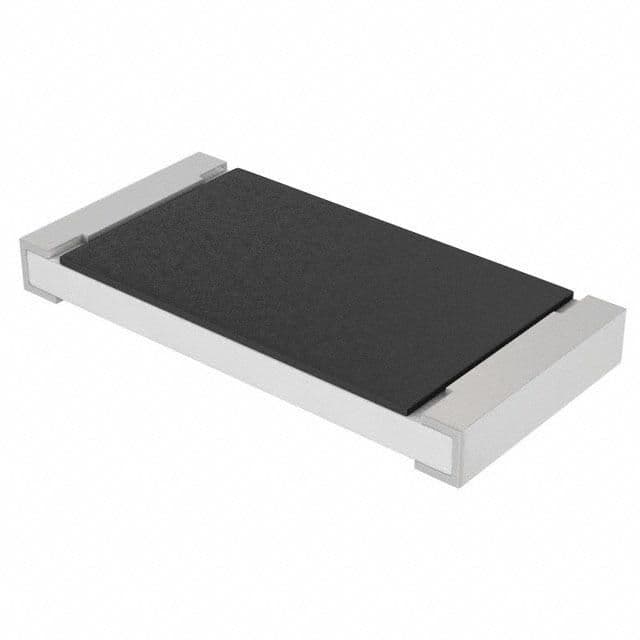

Product Images
