PackageDIP
Capacitance25pF
Current Rating4A
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay DF10M-E3/45 technical specifications.
General
Average Rectified Current
1A
Capacitance
25pF
Package/Case
DIP
Current Rating
4A
Forward Current
1A
Height
3.3mm
Lead Free
Lead Free
Length
8.51mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
50A
Mount
Through Hole
Number of Elements
1
Package Quantity
5000
Packaging
Rail/Tube
Peak Non-Repetitive Surge Current
50A
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Width
6.5mm
Compliance
RoHS
Compliant
Datasheet
Vishay DF10M-E3/45 Datasheet
Download the complete datasheet for Vishay DF10M-E3/45 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

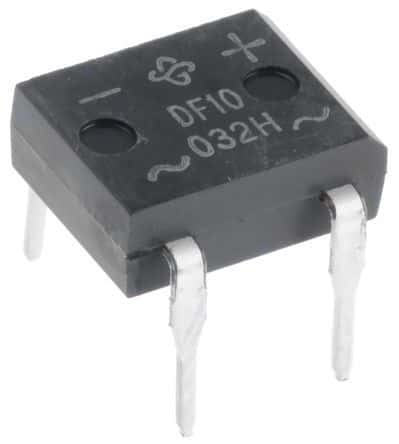

Product Images
