Quad SPST analog switch IC featuring 4 channels, surface mountable in a 16-pin SOIC package. Operates with dual supply voltages from 4.5V to 22V, with a maximum supply voltage of 25V. Offers on-state resistance of 160 Ohms and a drain-to-source resistance of 85 Ohms. Maximum power dissipation is 640mW, with a maximum operating temperature of 85°C. Turn-on delay is 120ns, and turn-off delay is 65ns. RoHS compliant and lead-free.
PackageSOIC
Current100uA
MountingSurface Mount
Power640mW
Quick Jump:
Technical Specifications
Vishay DG201BDY-T1-E3 technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
85R
Height
1.55mm
Lead Free
Lead Free
Length
10mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
640mW
Max Supply Current
50uA
Max Supply Voltage
25V
Min Supply Voltage
4.5V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
On-State Resistance
160R
Operating Supply Current
50uA
Package Quantity
1
Packaging
Tape and Reel
Power Dissipation
640mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
100uA
Supply Type
Single, Dual
Throw Configuration
SPST
Turn-Off Delay Time
65ns
Turn-On Delay Time
120ns
Weight
0.023492oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG201BDY-T1-E3 Datasheet
Download the complete datasheet for Vishay DG201BDY-T1-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

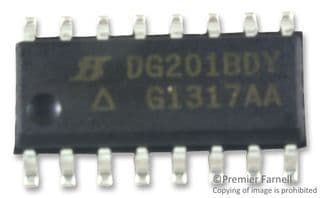

Product Images
