Single-pole double-throw (SPDT) analog switch IC, surface mountable in a TSOP package. Features a 2.7V to 5.5V supply voltage range, 1uA maximum supply current, and 570mW power dissipation. Operates from -40°C to 85°C with 1 channel, 1 input, and 2 outputs. RoHS compliant and lead-free.
PackageTSOP
Current200nA
MountingSurface Mount
Power570mW
Quick Jump:
Technical Specifications
Vishay DG2020DV-T1-E3 technical specifications.
General
Package/Case
TSOP
Height
1mm
Lead Free
Lead Free
Length
3.05mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
570mW
Max Supply Current
1uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
570mW
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
200nA
Supply Type
Single
Termination
SMD/SMT
Throw Configuration
SPDT
Turn-Off Delay Time
1us
Turn-On Delay Time
3us
Weight
0.000705oz
Width
1.65mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG2020DV-T1-E3 Datasheet
Download the complete datasheet for Vishay DG2020DV-T1-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

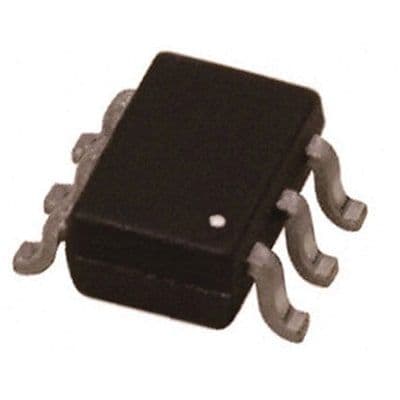

Product Images
