Quad SPST analog switch IC featuring 4 independent circuits, each with 4 inputs and 4 outputs. Operates with single or dual supply voltages ranging from 4.5V to 22V (dual) or 4.5V to 25V (single). Offers a low drain-to-source resistance of 85 Ohms and a maximum power dissipation of 470mW. Packaged in a 16-pin PDIP for through-hole mounting, with dimensions of 21.33mm length, 7.11mm width, and 3.81mm height. Operating temperature range is -40°C to 85°C.
PackagePDIP
MountingThrough Hole
Power470mW
Quick Jump:
Technical Specifications
Vishay DG211BDJ technical specifications.
General
Package/Case
PDIP
Drain to Source Resistance
85R
Height
3.81mm
Length
21.33mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
470mW
Max Supply Current
10uA
Max Supply Voltage
25V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
470mW
Reach SVHC Compliant
No
RoHS Compliant
No
Supply Type
Single, Dual
Weight
0.057419oz
Width
7.11mm
Compliance
RoHS
Not Compliant
Datasheet
Vishay DG211BDJ Datasheet
Download the complete datasheet for Vishay DG211BDJ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

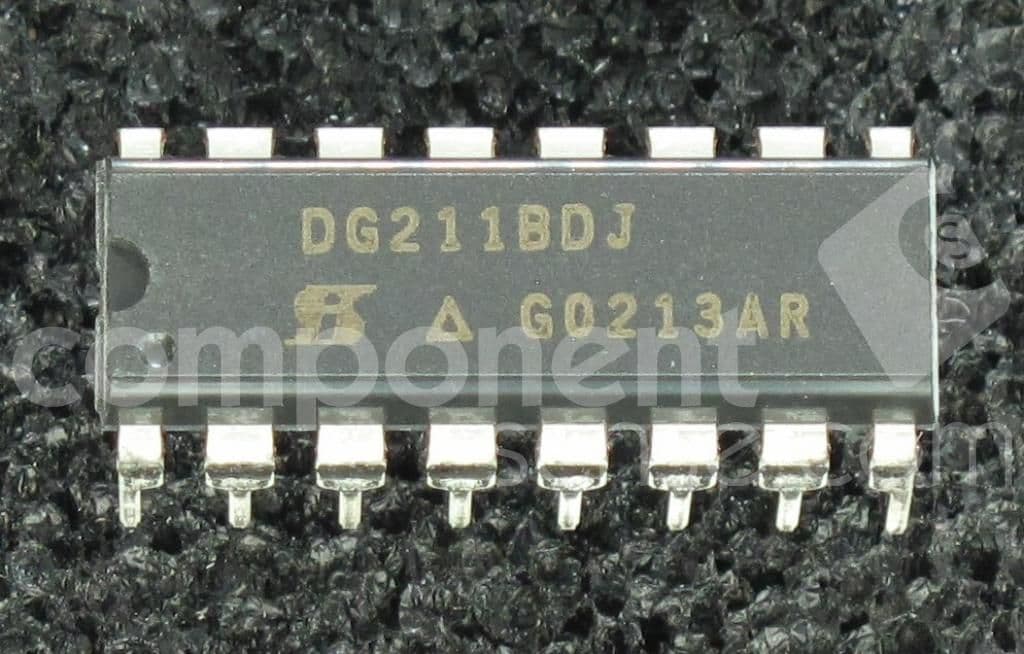

Product Images
