Quad SPST analog switch IC featuring four independent single-pole, single-throw circuits. Operates with dual supply voltages from 4.5V to 22V, and a maximum supply voltage of 25V. Offers a low drain-to-source resistance of 50 Ohms and a maximum power dissipation of 470mW. Designed for through-hole mounting in a 16-pin PDIP package, with a temperature range of -40°C to 85°C. RoHS compliant and lead-free.
PackagePDIP
Current50uA
MountingThrough Hole
Power470mW
Quick Jump:
Technical Specifications
Vishay DG212BDJ-E3 technical specifications.
General
Package/Case
PDIP
Drain to Source Resistance
50R
Height
3.81mm
Lead Free
Lead Free
Length
21.33mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
4.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
470mW
Max Supply Current
10uA
Max Supply Voltage
25V
Min Supply Voltage
4.5V
Mount
Through Hole
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
470mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
50uA
Supply Type
Single, Dual
Throw Configuration
SPST
Turn-On Delay Time
120ns
Weight
0.057419oz
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG212BDJ-E3 Datasheet
Download the complete datasheet for Vishay DG212BDJ-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

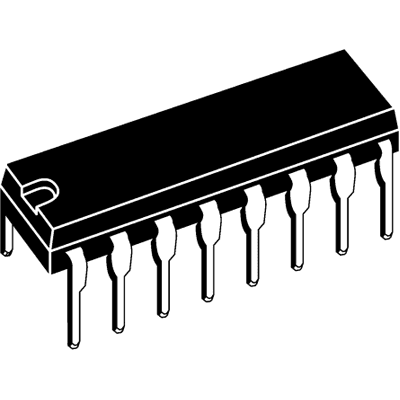

Product Images
