DPDT Multiplexer IC, QFN package, supporting USB 2.0 with a 480Mbps data rate and 620MHz bandwidth. Features a 2-channel, 2-circuit configuration with a 2.7V to 4.3V operating supply voltage range and 2µA operating supply current. Designed for surface mount applications, this lead-free, RoHS compliant component operates from -40°C to 85°C.
PackageQFN
Current2uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay DG2720DN-T1-E4 technical specifications.
General
-3db Bandwidth
620MHz
Bandwidth
620MHz
Package/Case
QFN
Data Rate
480Mbps
Height
0.55mm
Lead Free
Lead Free
Length
1.8mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
208mW
Max Supply Voltage
4.3V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
2
Operating Supply Current
2uA
Operating Supply Voltage
3V
Package Quantity
6000
Packaging
Tape and Reel
RoHS Compliant
Yes
Supply Current
2uA
Throw Configuration
DPDT
Weight
0.000247oz
Width
1.4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG2720DN-T1-E4 Datasheet
Download the complete datasheet for Vishay DG2720DN-T1-E4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

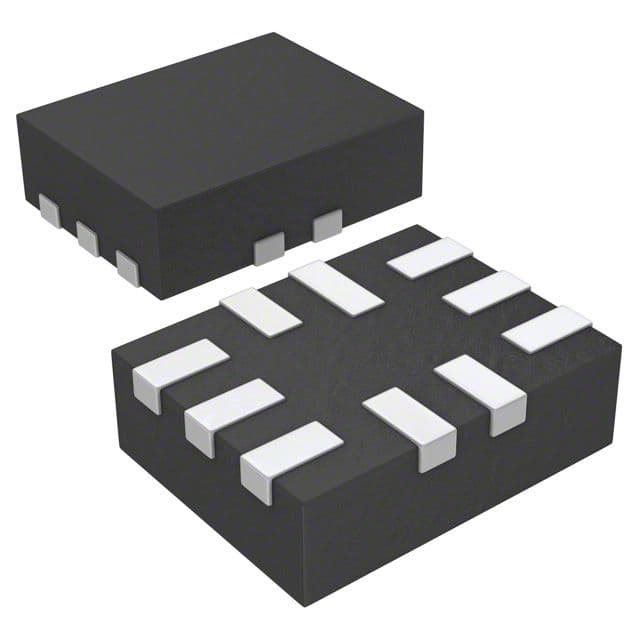

Product Images
