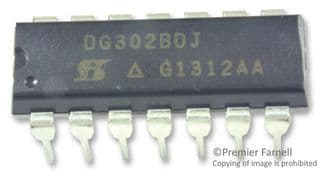

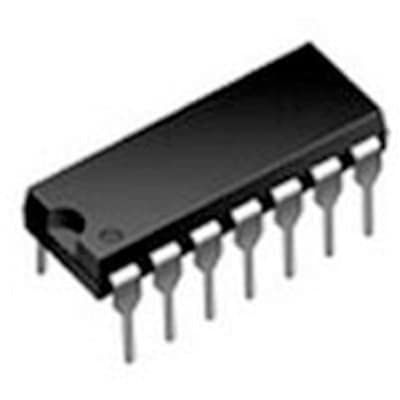

DG302BDJ-E3

IC Dual 4-Ch DPST Switch, PDIP, 30R, 15V

Dual 2-channel, double pole single throw analog switch IC featuring through-hole mounting in a PDIP package. Offers a wide dual supply voltage range from 7V to 22V and a single supply voltage range from 13V to 36V. With 4 channels, 4 inputs, and 2 outputs, this RoHS compliant component operates efficiently with a maximum supply current of 1mA and a power dissipation of 470mW. On-state resistance is 30 Ohms, and it operates across a temperature range of -40°C to 85°C.

PackagePDIP

MountingThrough Hole

Power470mW

Quick Jump:

Technical Specifications

Vishay DG302BDJ-E3 technical specifications.

General

Package/Case	PDIP
Dual Supply Voltage	15V
Max Dual Supply Voltage	22V
Min Dual Supply Voltage	7V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	470mW
Max Supply Current	1mA
Max Supply Voltage	36V
Min Supply Voltage	13V
Mount	Through Hole
Number of Channels	4
Number of Inputs	4
Number of Outputs	2
On-State Resistance	30R
Operating Supply Current	230uA
Operating Supply Voltage	15V
Package Quantity	500
Packaging	Rail/Tube
Power Dissipation	470mW
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Supply Type	Single, Dual
Throw Configuration	DPST
Weight	0.057144oz
