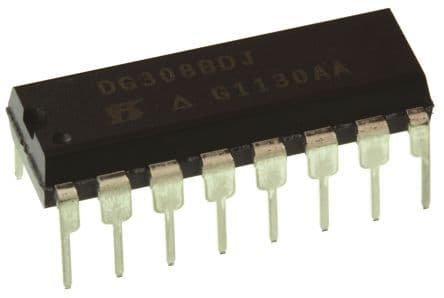

DG308BDJ-E3

Analog Switch Quad SPST 4-Ch 44V PDIP

Quad SPST analog switch, featuring 4 independent single-pole, single-throw circuits. Operates with dual supply voltages from 4V to 22V, and a maximum supply voltage of 44V. Offers a low drain-to-source resistance of 85 Ohms and a maximum power dissipation of 470mW. Packaged in a 16-pin PDIP for through-hole mounting, with a compact footprint of 21.33mm length, 7.11mm width, and 3.81mm height. This RoHS compliant component operates across a wide temperature range of -40°C to 85°C.

PackagePDIP

Current1uA

MountingThrough Hole

Power470mW

Quick Jump:

Technical Specifications

Vishay DG308BDJ-E3 technical specifications.

General

Package/Case	PDIP
Drain to Source Resistance	85R
Height	3.81mm
Lead Free	Lead Free
Length	21.33mm
Max Dual Supply Voltage	22V
Min Dual Supply Voltage	4V
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Max Power Dissipation	470mW
Max Supply Current	1uA
Max Supply Voltage	44V
Min Supply Voltage	4V
Mount	Through Hole
Number of Channels	4
Number of Circuits	4
Number of Inputs	4
Number of Outputs	4
Operating Supply Voltage	22V
Package Quantity	500
Packaging	Rail/Tube
Power Dissipation	470mW
Reach SVHC Compliant	Unknown
RoHS Compliant	Yes
Supply Current	1uA
Supply Type	Single, Dual
Throw Configuration	SPST
Weight	0.057419oz
Width	7.11mm
