16:1 analog multiplexer, surface mount, PLCC package. Features a maximum dual supply voltage of 20V and a minimum dual supply voltage of 5V. Operates with a single or dual supply type, with an operating supply voltage of 15V. Maximum power dissipation is 450mW, with a maximum supply current of 500uA and a maximum supply voltage of 44V. Minimum and maximum operating temperatures range from -40°C to 85°C.
PackagePLCC
MountingSurface Mount
Power450mW
Quick Jump:
Technical Specifications
Vishay DG406DN-T1 technical specifications.
General
Package/Case
PLCC
Height
3.69mm
Length
12.57mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Current
500uA
Max Supply Voltage
44V
Min Supply Voltage
7.5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
16
Number of Outputs
1
Operating Supply Voltage
15V
Package Quantity
500
Packaging
Tape and Reel
Power Dissipation
450mW
Propagation Delay
350ns
RoHS Compliant
No
Supply Type
Single, Dual
Weight
0.041719oz
Width
12.57mm
Compliance
RoHS
Not Compliant
Datasheet
Vishay DG406DN-T1 Datasheet
Download the complete datasheet for Vishay DG406DN-T1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

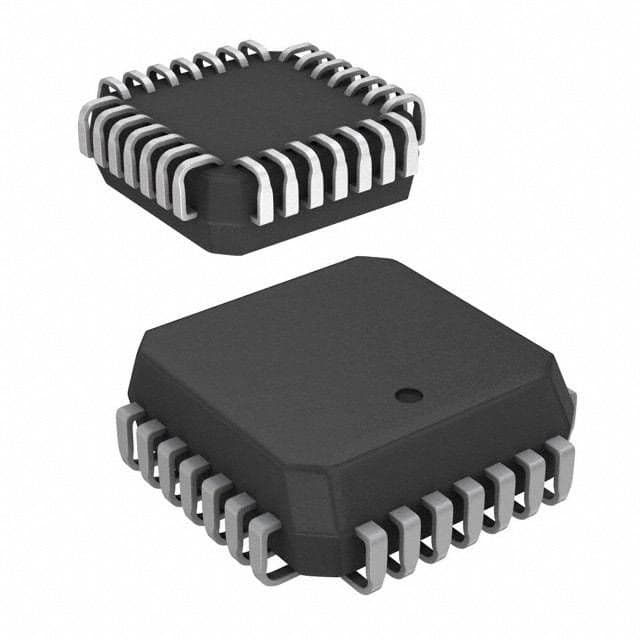

Product Images
