CMOS differential multiplexer, 1 circuit, 16 inputs, 2 outputs, and 2 channels. Features a 100 Ohm drain-to-source resistance and operates with dual supply voltages from 5V to 20V, or a single supply voltage of 7.5V to 44V. Surface mountable in a PLCC package with dimensions of 12.57mm (L) x 12.57mm (W) x 3.69mm (H). Maximum power dissipation is 450mW, with a typical supply current of 50µA.
PackagePLCC
Current50uA
MountingSurface Mount
Power450mW
Quick Jump:
Technical Specifications
Vishay DG407DN technical specifications.
General
Package/Case
PLCC
Drain to Source Resistance
100R
Height
3.69mm
Length
12.57mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
450mW
Max Supply Current
500uA
Max Supply Voltage
44V
Min Supply Voltage
7.5V
Mount
Surface Mount
Number of Channels
2
Number of Circuits
1
Number of Inputs
16
Number of Outputs
2
Operating Supply Voltage
15V
Package Quantity
400
Packaging
Rail/Tube
Power Dissipation
450mW
Propagation Delay
350ns
Reach SVHC Compliant
Unknown
RoHS Compliant
No
Supply Current
50uA
Supply Type
Single, Dual
Weight
0.041719oz
Width
12.57mm
Compliance
RoHS
Not Compliant
Datasheet
Vishay DG407DN Datasheet
Download the complete datasheet for Vishay DG407DN to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

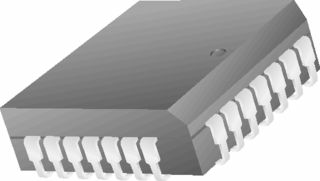

Product Images
