CMOS single-ended multiplexer featuring 8 input channels and 1 output. Operates with single or dual supply voltages ranging from 5V to 20V (dual) or 36V (single), with a maximum supply voltage of 44V. Offers a low drain-to-source resistance of 40 Ohms and a maximum power dissipation of 600mW. Packaged in a 16-pin SOIC N surface-mount package, this component has a propagation delay of 175ns and turn-on/off delay times of 600ns and 300ns respectively.
PackageSOIC N
MountingSurface Mount
Power600mW
Quick Jump:
Technical Specifications
Vishay DG408DY technical specifications.
General
Package/Case
SOIC N
Drain to Source Resistance
40R
Dual Supply Voltage
15V
Height
1.55mm
High Level Output Current
30mA
Length
10mm
Max Dual Supply Voltage
20V
Min Dual Supply Voltage
5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
600mW
Max Supply Current
500uA
Max Supply Voltage
44V
Min Supply Voltage
5V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
8
Number of Outputs
1
Operating Supply Current
75uA
Operating Supply Voltage
36V
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
600mW
Propagation Delay
175ns
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Supply Type
Single, Dual
Turn-Off Delay Time
300ns
Turn-On Delay Time
600ns
Weight
0.019312oz
Width
4mm
Compliance
RoHS
Not CompliantNo
Datasheet
Vishay DG408DY Datasheet
Download the complete datasheet for Vishay DG408DY to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

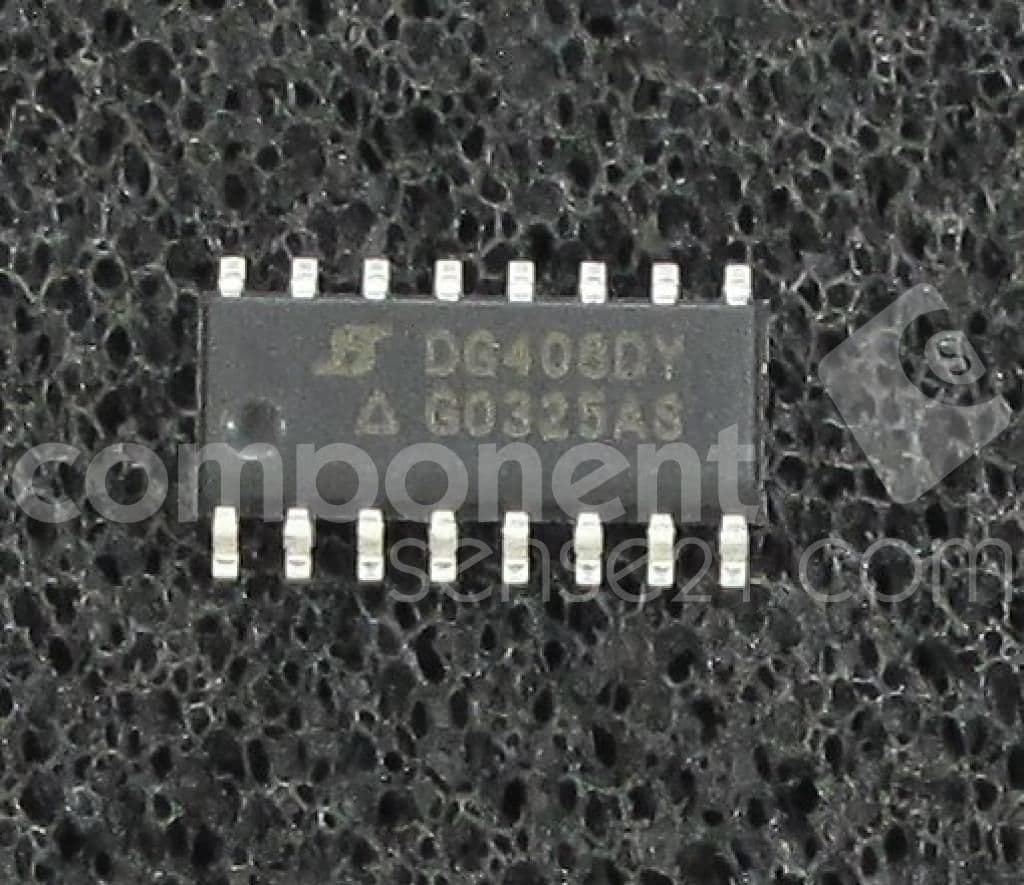

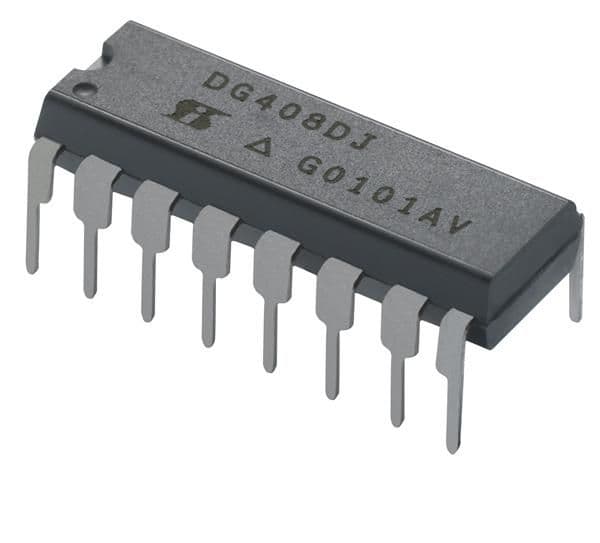

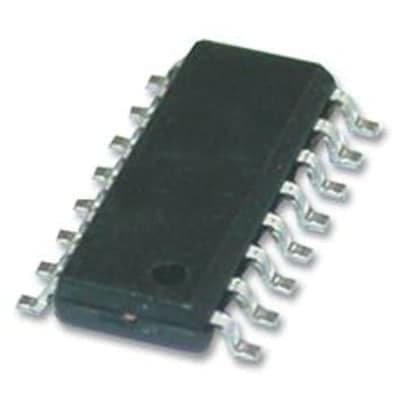

Product Images
