Single Pole Single Throw (SPST) analog switch, surface mountable in an 8-pin SOIC package. Features 20 Ohms drain-to-source resistance and operates with dual supply voltages ranging from 7V to 22V, or a single supply from 13V to 36V. Maximum power dissipation is 400mW, with a low supply current of 1nA. This RoHS compliant component offers a 100ns turn-on delay and operates across a temperature range of -40°C to 85°C.
PackageSOIC
Current1nA
MountingSurface Mount
Power400mW
Quick Jump:
Technical Specifications
Vishay DG417DY-E3 technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
20R
Dual Supply Voltage
15V
Height
1.55mm
Lead Free
Lead Free
Length
5mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Supply Current
1uA
Max Supply Voltage
36V
Min Supply Voltage
13V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
1
Operating Supply Voltage
15V
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
400mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
1nA
Supply Type
Single, Dual
Throw Configuration
SPST
Turn-On Delay Time
100ns
Weight
0.019048oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG417DY-E3 Datasheet
Download the complete datasheet for Vishay DG417DY-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

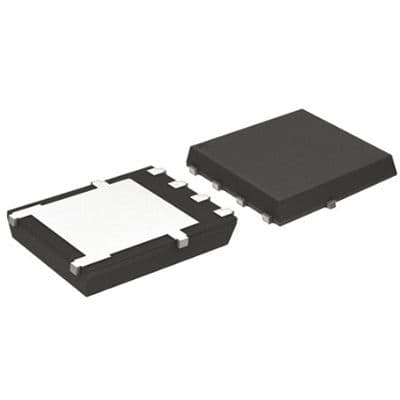

Product Images
