Single SPDT analog switch, PDIP package, featuring 20 Ohm drain-to-source resistance. Operates with dual supply voltages from 7V to 22V, or single supply from 13V to 36V, with a typical operating voltage of 15V. Offers one channel with one input and two outputs, supporting through-hole mounting. Maximum power dissipation is 400mW, with a low supply current of 1nA. This RoHS compliant component operates across a temperature range of -40°C to 85°C.
PackagePDIP
Current1nA
MountingThrough Hole
Power400mW
Quick Jump:
Technical Specifications
Vishay DG419DJ-E3 technical specifications.
General
Package/Case
PDIP
Drain to Source Resistance
20R
Dual Supply Voltage
15V
Height
3.81mm
Lead Free
Lead Free
Length
10.92mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
400mW
Max Supply Current
1uA
Max Supply Voltage
36V
Min Supply Voltage
13V
Mount
Through Hole
Number of Channels
1
Number of Circuits
1
Number of Inputs
1
Number of Outputs
2
Operating Supply Voltage
15V
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
400mW
Radiation Hardening
No
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Supply Current
1nA
Supply Type
Single, Dual
Throw Configuration
SPDT
Turn-On Delay Time
100ns
Weight
0.032805oz
Width
7.11mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG419DJ-E3 Datasheet
Download the complete datasheet for Vishay DG419DJ-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

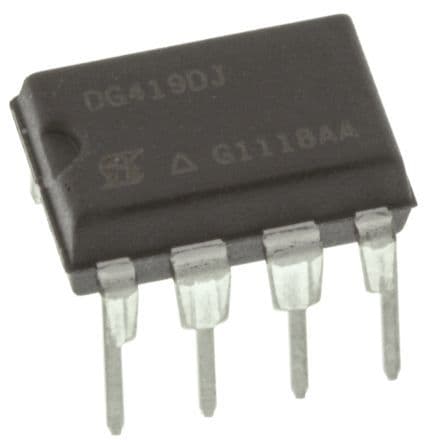

Product Images
