Quad SPST analog switch, surface mountable in a 16-pin SOIC package. Features 4 channels with 85 Ohm drain-to-source resistance. Operates with dual supply voltages from 7V to 22V, or single supply from 13V to 36V, with a maximum supply voltage of 44V. Offers a wide operating temperature range of -40°C to 85°C and a maximum power dissipation of 900mW. RoHS compliant and lead-free.
PackageSOIC
Voltage44V
Current15uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay DG441DY-E3 technical specifications.
General
Package/Case
SOIC
Drain to Source Resistance
85R
Dual Supply Voltage
15V
Height
1.55mm
Lead Free
Lead Free
Length
10mm
Max Dual Supply Voltage
22V
Min Dual Supply Voltage
7V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
900mW
Max Supply Current
100uA
Max Supply Voltage
36V
Min Supply Voltage
13V
Mount
Surface Mount
Number of Channels
4
Number of Circuits
4
Number of Inputs
4
Number of Outputs
4
Package Quantity
500
Packaging
Rail/Tube
Power Dissipation
900mW
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
15uA
Supply Type
Single, Dual
Throw Configuration
SPST
Voltage
44V
Weight
0.023492oz
Width
4mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG441DY-E3 Datasheet
Download the complete datasheet for Vishay DG441DY-E3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

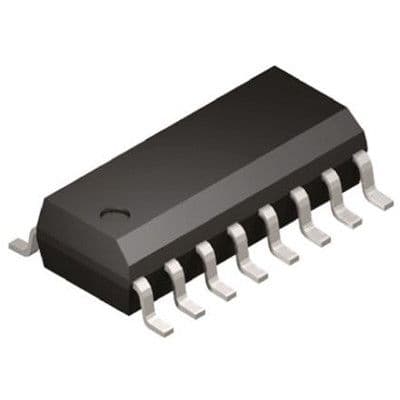

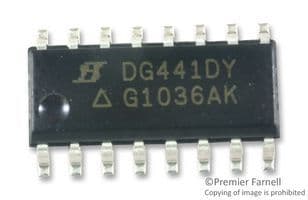

Product Images
