Technical Specifications
Vishay DG636EN-T1-E4 technical specifications.
General
-3db Bandwidth
610MHz
Package/Case
WFQFN
Height
0.75mm
Length
2.6mm
Max Dual Supply Voltage
5V
Min Dual Supply Voltage
2.7V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Power Dissipation
525mW
Max Supply Current
500nA
Max Supply Voltage
12V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Circuits
2
Package Quantity
3000
Packaging
Tape and Reel
Radiation Hardening
No
RoHS Compliant
Yes
Supply Type
Single, Dual
Width
1.8mm
Compliance
RoHS
Compliant
Datasheet
Vishay DG636EN-T1-E4 Datasheet
Download the complete datasheet for Vishay DG636EN-T1-E4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

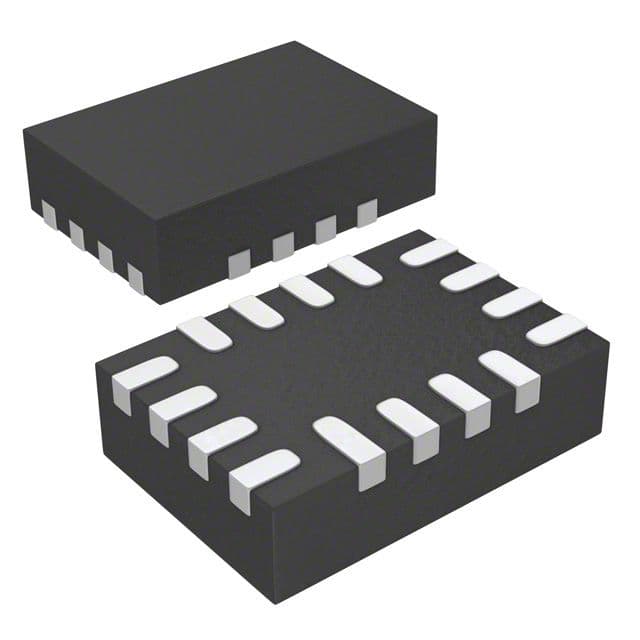

Product Images
