PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Vishay GBU6M-E3/51 technical specifications.
General
Average Rectified Current
3.8A
Package/Case
SIP
Forward Current
6A
Height
18.8mm
Lead Free
Lead Free
Length
22.3mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
1kV
Max Reverse Current
5uA
Max Reverse Leakage Current
5uA
Max Surge Current
175A
Mount
Through Hole
Number of Elements
1
Package Quantity
250
Packaging
Bulk
Peak Non-Repetitive Surge Current
175A
Radiation Hardening
No
RoHS Compliant
Yes
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Vishay GBU6M-E3/51 Datasheet
Download the complete datasheet for Vishay GBU6M-E3/51 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

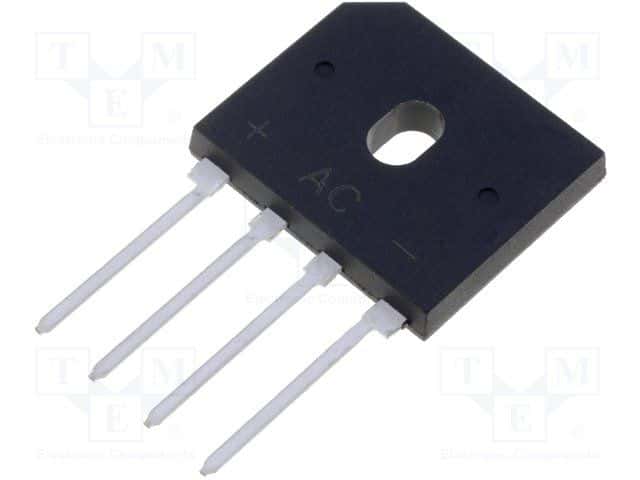

Product Images
