Vishay
GSD2004W-E3-08
Rectifier Diode, 1 Element, 0.225A, 300V V(RRM), Silicon, ROHS COMPLIANT PACKAGE-2
MountingSurface Mount
Quick Jump:
Technical Specifications
Vishay GSD2004W-E3-08 technical specifications.
General
Average Rectified Current
225mA
Forward Current
225mA
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
350mW
Max Repetitive Reverse Voltage (Vrrm)
300V
Max Reverse Leakage Current
100nA
Max Reverse Voltage (DC)
240V
Max Surge Current
4A
Mount
Surface Mount
Package Quantity
3000
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
4A
Radiation Hardening
No
Reverse Recovery Time
50ns
RoHS Compliant
Yes
Series
Automotive, AEC-Q101
Weight
0.000363oz
Compliance
RoHS
Compliant
Datasheet
Vishay GSD2004W-E3-08 Datasheet
Download the complete datasheet for Vishay GSD2004W-E3-08 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

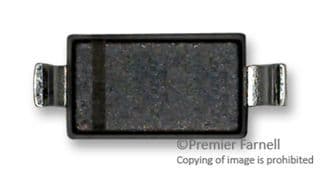

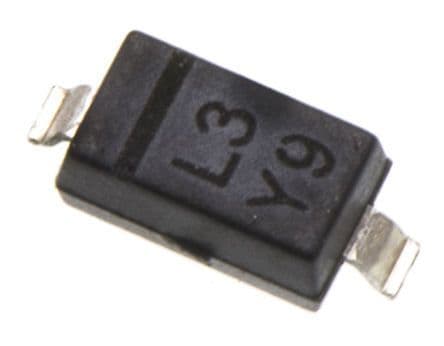

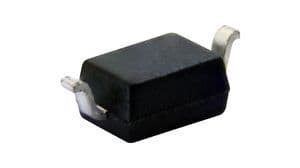

Product Images
