Vishay
IHLP3232DZER2R2MA1

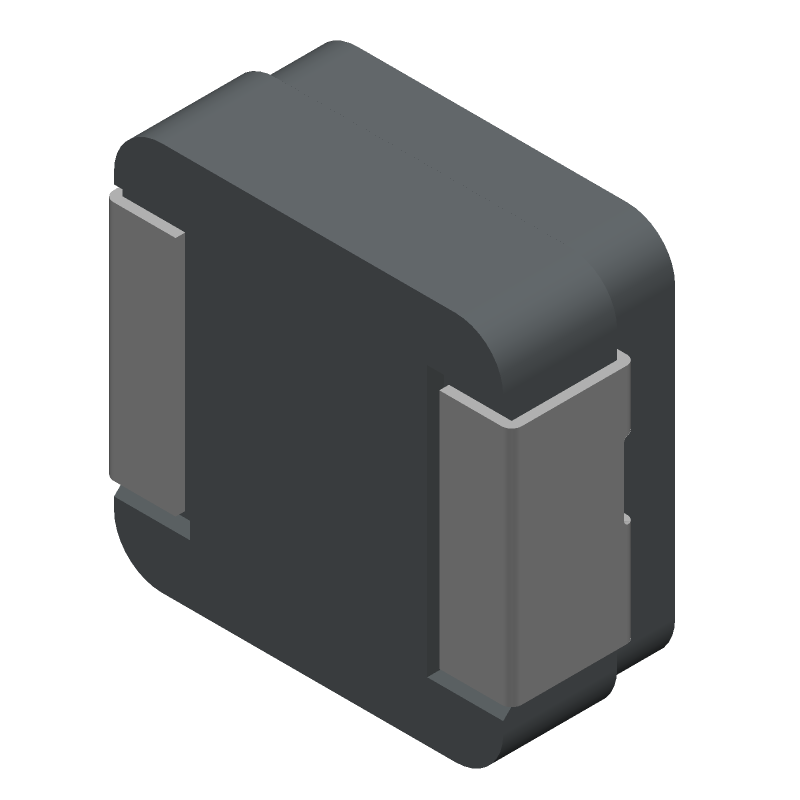

Inductor Power Shielded Wirewound 2.2uH 20% 100KHz Powdered Iron 10.5A 0.0137Ohm DCR 3232 Automotive T/R
Quick Jump:
Technical Specifications
Vishay IHLP3232DZER2R2MA1 technical specifications.
General
| Max Operating Temperature | 125 |
| Number of Terminals | 2 |
| Min Operating Temperature | -55 |
| Number of Functions | 1 |
| Package Length | 8.18 |
| Tolerance | 20 |
| Package Width | 8.18 |
| Package Height | 4 |
| Terminal Placement | DUAL ENDED |
| Inductance-Nom (L) | 2.2 |
| Inductor Type | GENERAL PURPOSE INDUCTOR |
| Shielded | YES |
| Inductor Application | HIGH CURRENT INDUCTOR |
| DC Resistance | 0.0137 |
| Rated Current-Max | 10.5 |
| Test Frequency | 0.1 |
| Self Resonance Frequency | 33 |
Compliance
| Eccn Code | EAR99 |
| HTS Code | 8504.50.80.00 |
| REACH | unknown |
| Military Spec | False |
Datasheet
Vishay IHLP3232DZER2R2MA1 Datasheet
Download the complete datasheet for Vishay IHLP3232DZER2R2MA1 to view detailed technical specifications.
No datasheet is available for this part.
