P-channel MOSFET transistor for through-hole mounting in a TO-220AB package. Features a continuous drain current of 19A and a drain-source breakdown voltage of -100V. Offers a maximum drain-source on-resistance of 200mR at a nominal gate-source voltage of -4V. Operates across a temperature range of -55°C to 175°C with a maximum power dissipation of 150W. Includes fast switching characteristics with turn-on delay time of 16ns and fall time of 57ns.
PackageTO-220AB
MountingThrough Hole
PolarityP-CHANNEL
Power150W
Quick Jump:
Technical Specifications
Vishay IRF9540PBF technical specifications.
General
Package/Case
TO-220AB
Continuous Drain Current (ID)
19A
Drain to Source Breakdown Voltage
-100V
Drain to Source Resistance
200mR
Drain to Source Voltage (Vdss)
-100V
Drain-source On Resistance-Max
200mR
Fall Time
57ns
Gate to Source Voltage (Vgs)
20V
Height
9.01mm
Input Capacitance
1.4nF
Length
10.41mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
150W
Mount
Through Hole
Nominal Vgs
-4V
Number of Channels
1
Number of Elements
1
Package Quantity
1000
Packaging
Rail/Tube
Polarity
P-CHANNEL
Polarization
P
Power Dissipation
150W
Rds On Max
200mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Threshold Voltage
-4V
Turn-Off Delay Time
34ns
Turn-On Delay Time
16ns
DC Rated Voltage
-100V
Weight
0.211644oz
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRF9540PBF Datasheet
Download the complete datasheet for Vishay IRF9540PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

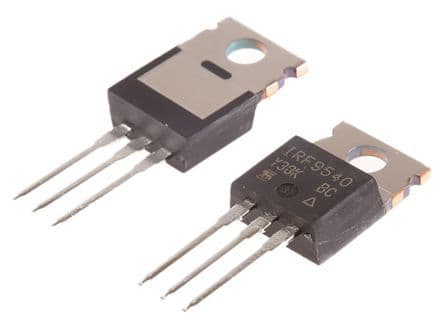

Product Images
