P-channel MOSFET, 60V drain-source voltage, 18A continuous drain current, and 140mΩ drain-source on-resistance. Features a 1.1nF input capacitance and a threshold voltage of -4V. Operates from -55°C to 175°C with a maximum power dissipation of 3.7W. Packaged in a surface-mount D2PAK with lead-free and RoHS compliance.
PackageD2PAK
MountingSurface Mount
PolarityP-CHANNEL
Power3.7W
Quick Jump:
Technical Specifications
Vishay IRF9Z34SPBF technical specifications.
General
Package/Case
D2PAK
Continuous Drain Current (ID)
18A
Drain to Source Resistance
140mR
Drain to Source Voltage (Vdss)
60V
Drain-source On Resistance-Max
140mR
Fall Time
58ns
Gate to Source Voltage (Vgs)
20V
Height
4.83mm
Input Capacitance
1.1nF
Lead Free
Lead Free
Length
10.67mm
Max Operating Temperature
175°C
Min Operating Temperature
-55°C
Max Power Dissipation
3.7W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
1
Packaging
Rail/Tube
Polarity
P-CHANNEL
Power Dissipation
3.7W
Radiation Hardening
No
Rds On Max
140mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Threshold Voltage
-4V
Turn-Off Delay Time
20ns
Turn-On Delay Time
18ns
Weight
0.050717oz
Width
9.65mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRF9Z34SPBF Datasheet
Download the complete datasheet for Vishay IRF9Z34SPBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

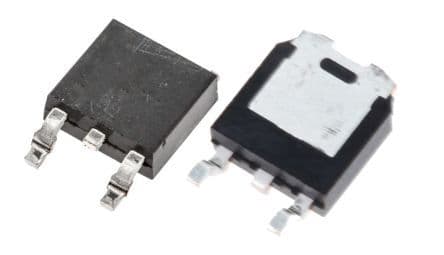

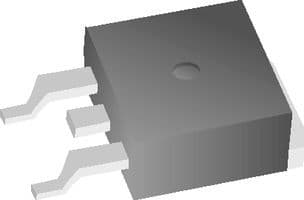

Product Images
