P-channel MOSFET, surface mount, DPAK package. Features -60V drain-source breakdown voltage, 5.1A continuous drain current, and 500mΩ maximum drain-source on-resistance. Operates from -55°C to 150°C with a 25W maximum power dissipation. Includes 270pF input capacitance and 31ns fall time. RoHS compliant.
PackageDPAK
Current Rating-5.1A
MountingSurface Mount
PolarityP-CHANNEL
Quick Jump:
Technical Specifications
Vishay IRFR9014PBF technical specifications.
General
Package/Case
DPAK
Continuous Drain Current (ID)
5.1A
Current Rating
-5.1A
Drain to Source Breakdown Voltage
-60V
Drain to Source Resistance
500mR
Drain to Source Voltage (Vdss)
-60V
Drain-source On Resistance-Max
500mR
Fall Time
31ns
Gate to Source Voltage (Vgs)
20V
Height
2.39mm
Input Capacitance
270pF
Lead Free
Lead Free
Length
6.73mm
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
25W
Mount
Surface Mount
Number of Channels
1
Number of Elements
1
Package Quantity
3000
Packaging
Rail/Tube
Polarity
P-CHANNEL
Polarization
P
Power Dissipation
2.5W
Radiation Hardening
No
Rds On Max
500mR
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Threshold Voltage
-4V
Turn-Off Delay Time
9.6ns
Turn-On Delay Time
11ns
DC Rated Voltage
-60V
Weight
0.050717oz
Width
6.22mm
Compliance
RoHS
Compliant
Datasheet
Vishay IRFR9014PBF Datasheet
Download the complete datasheet for Vishay IRFR9014PBF to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

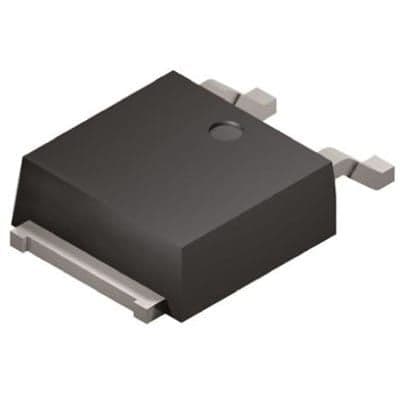

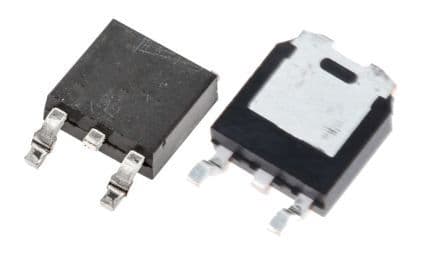

Product Images
